TEAM-10K

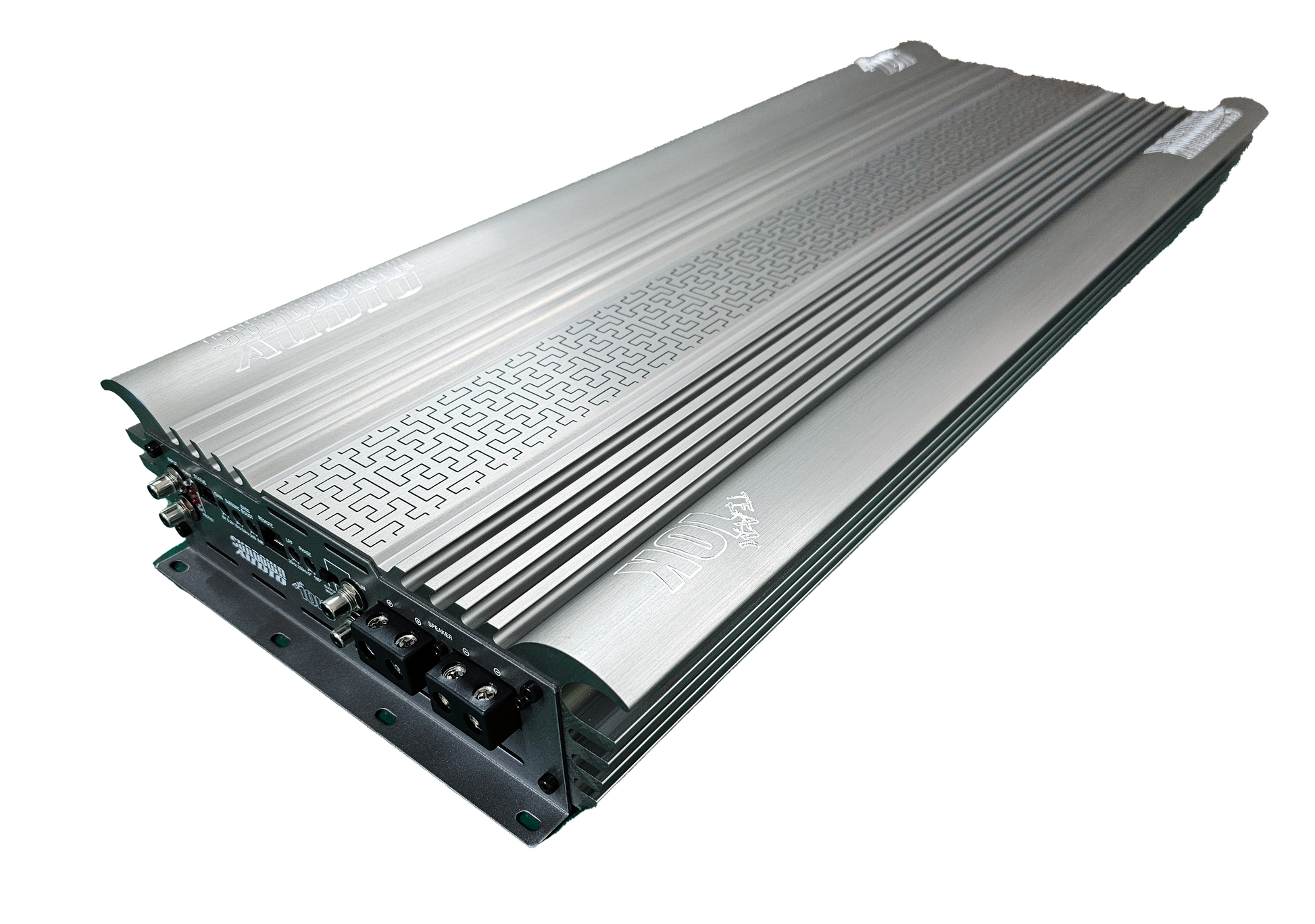

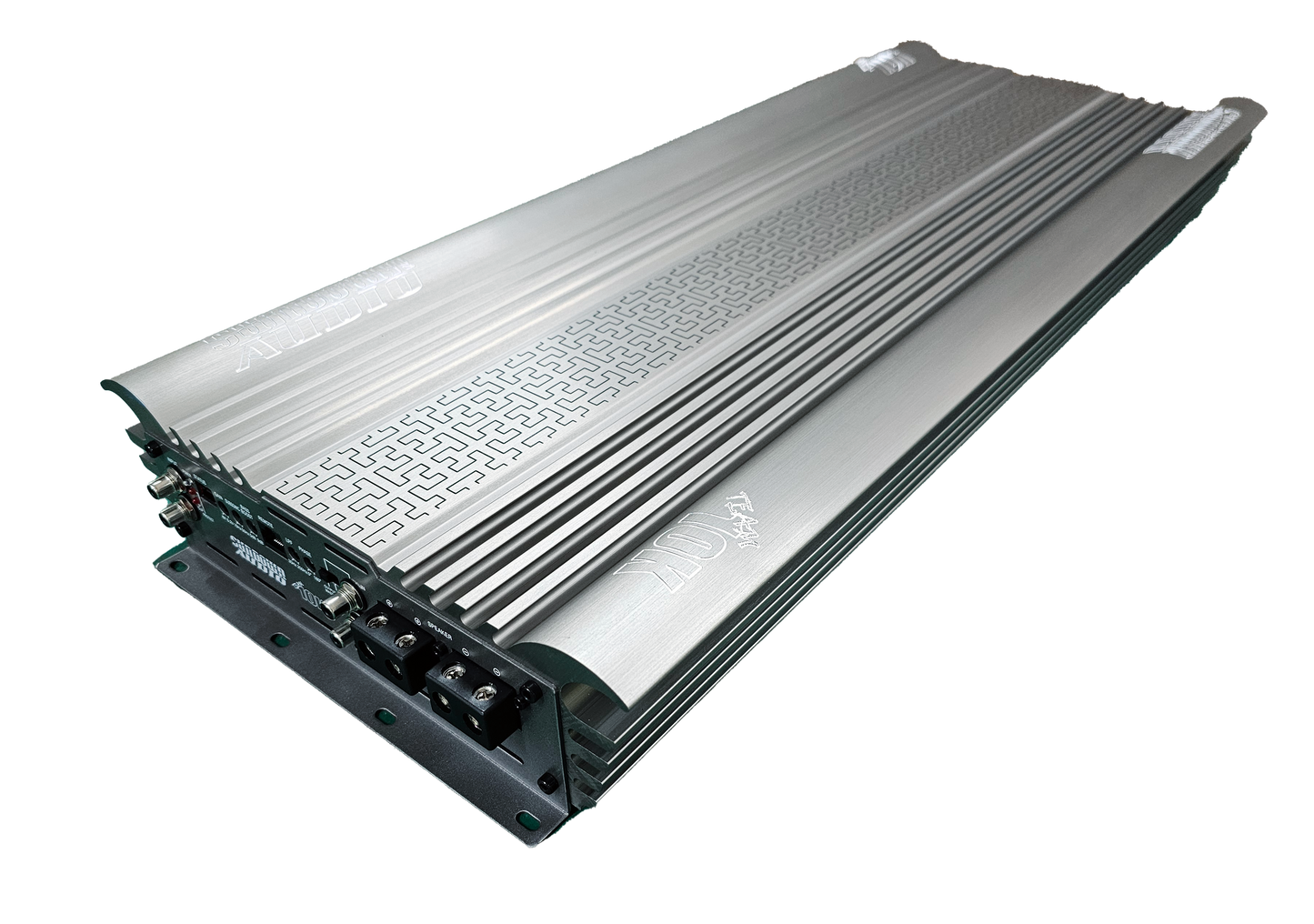

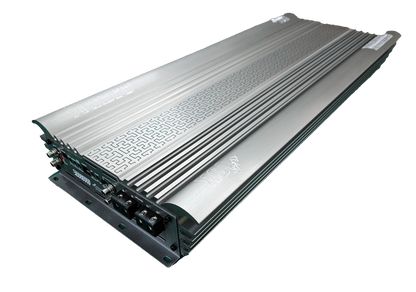

Sundown Audio Team10K | 10,000W RMS Class D Monoblock Amplifier

Undeniable Power. Proven Performance. Built for the Elite.

The Team10K represents the pinnacle of Sundown Audio’s amplifier engineering. Designed specifically for the needs of SPL competitors and high-output demo builds, this amplifier delivers a staggering 10,000 watts RMS at 1 ohm with precision and control. And for those who demand even more, the Team10K can be strapped to produce up to 20,000 watts RMS, making it a true heavyweight in the world of car audio.

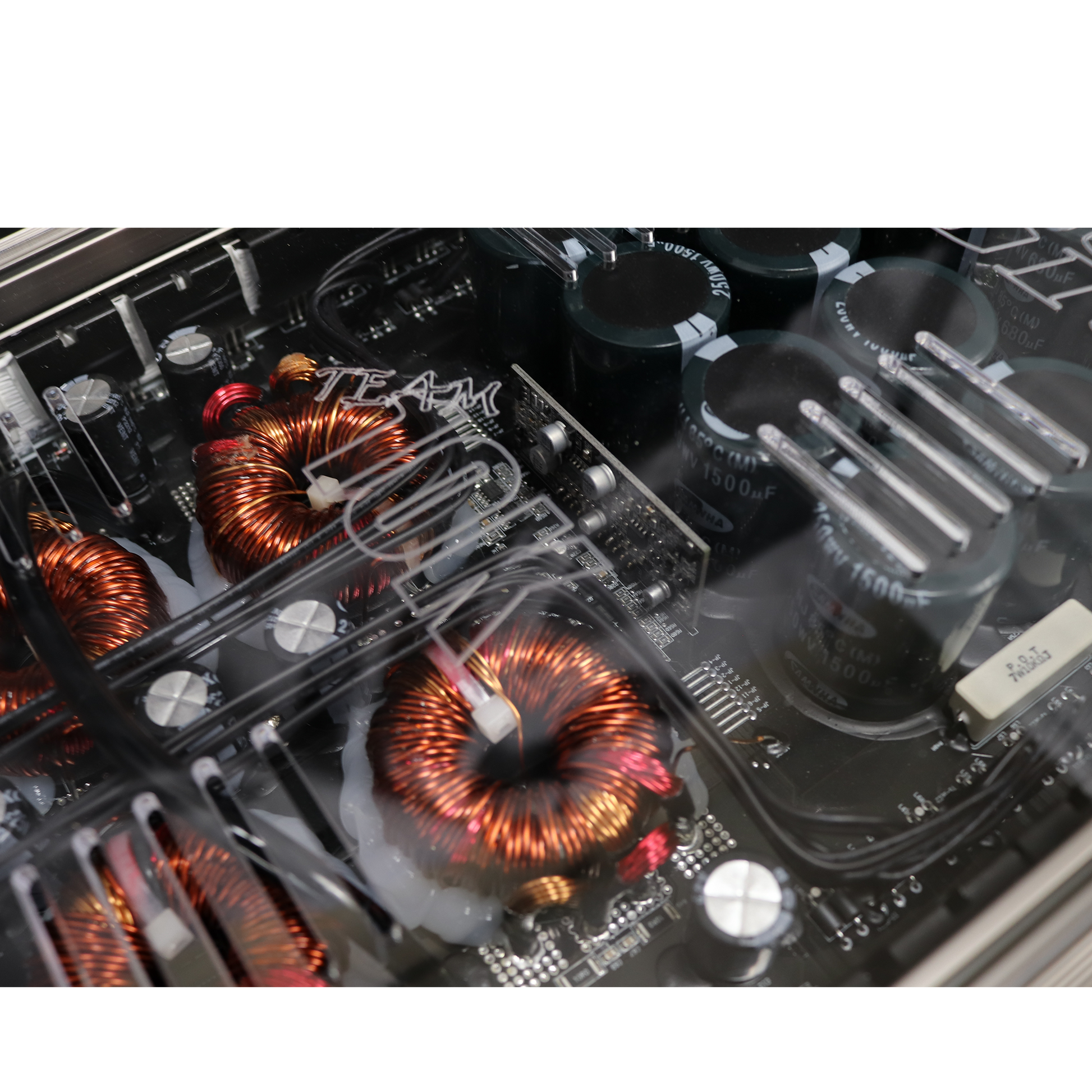

At the core of the Team10K is a highly efficient Class D platform, paired with a dual MOSFET PWM power supply and a suite of intelligent protection systems. Whether you're pushing your system hard in the lanes or flexing in a demo, you can rely on stable, consistent output. Real-time monitoring through the wired remote keeps you informed with instant feedback on voltage, temperature, and clipping — giving you confidence and control no matter the environment.

With precise crossover tuning, rugged construction, and legendary Sundown reliability, the Team10K is purpose-built for serious enthusiasts who won’t compromise. It’s more than power — it’s performance you can trust, round after round, show after show. Step up to the Team10K and experience what top-tier amplifier engineering really sounds like.

Technical Specifications:

Power Output (RMS @ 14.4V):

• 1 Ohm Mono: 10,000W
• 2 Ohm Mono: 7,000W
• 4 Ohm Mono: 4,000W
• 2 Ohm Strapped (Linked): 20,000W

General:

• Class D Digital Monoblock Design
• Dual MOSFET PWM Power Supply
• Efficiency: > 97% (at 4 Ohms)
• Input Sensitivity: 6V – 0.2V
• Frequency Response: 15Hz – 264Hz
• Signal-to-Noise Ratio: 91 dB
• Damping Factor: > 400
• THD: < 0.1%
• Working Voltage: 9V – 16.5V

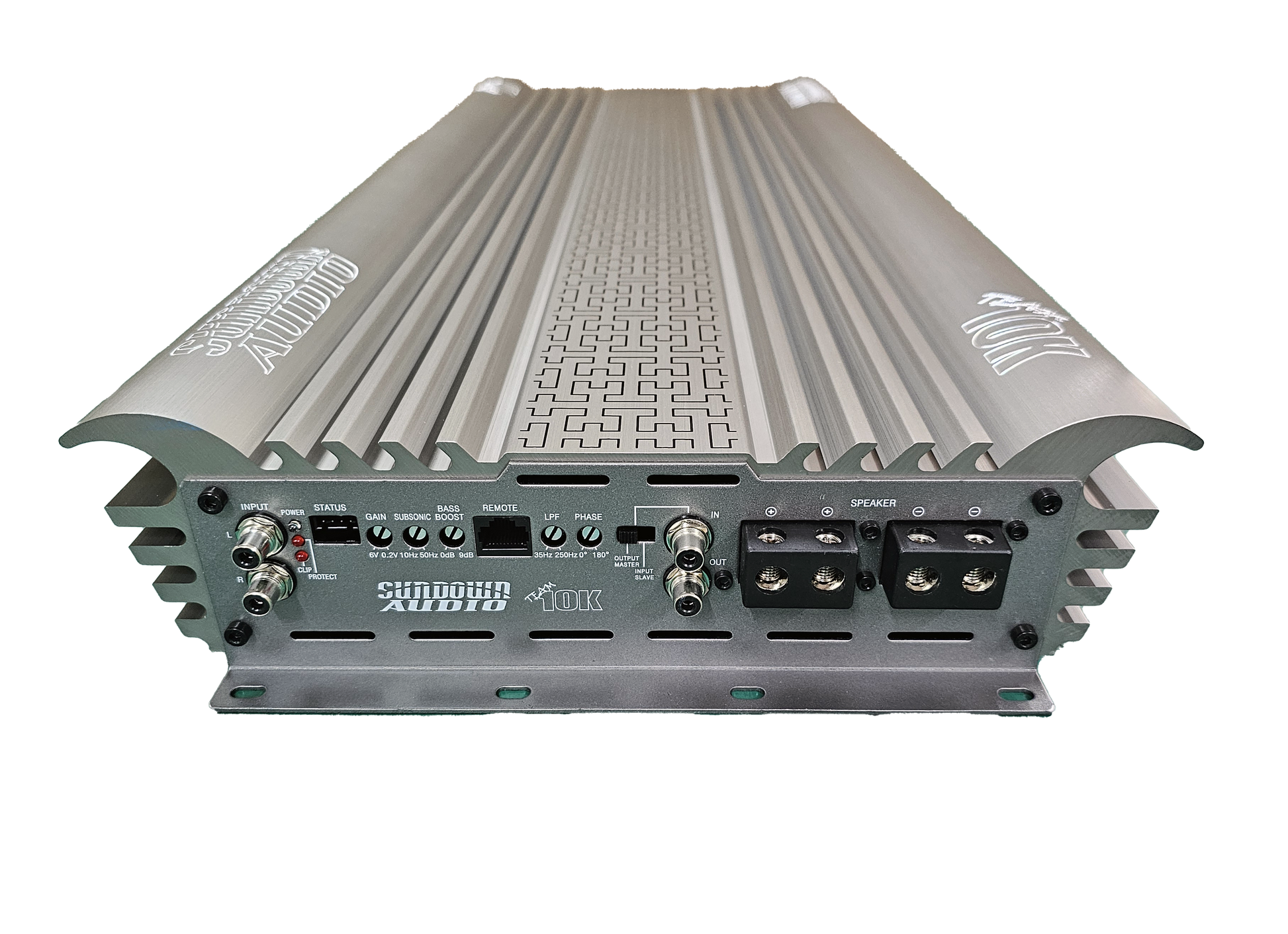

Controls & Filters:

• Low Pass Filter: 35Hz – 250Hz (24 dB/Oct)
• Subsonic Filter: 10Hz – 50Hz (24 dB/Oct)
• Bass Boost: 0 – 9 dB @ 45Hz
• Phase Shift: 0 – 180°

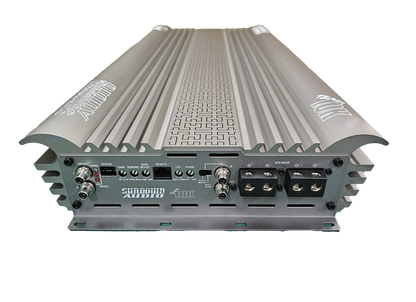

Connectivity & Extras:

• RCA Inputs/Outputs (for Master/Slave Linking)
• Wired Remote Control with:
• Voltage Display
• Temperature Display
• Clipping Indicator

Protection Features:

• Thermal
• Voltage
• Speaker Short
• DC Offset

Fuse Rating:

• 1000A (External – not built-in)

Dimensions:

• 27.55" (L) x 11.82" (W) x 3.06" (H)
