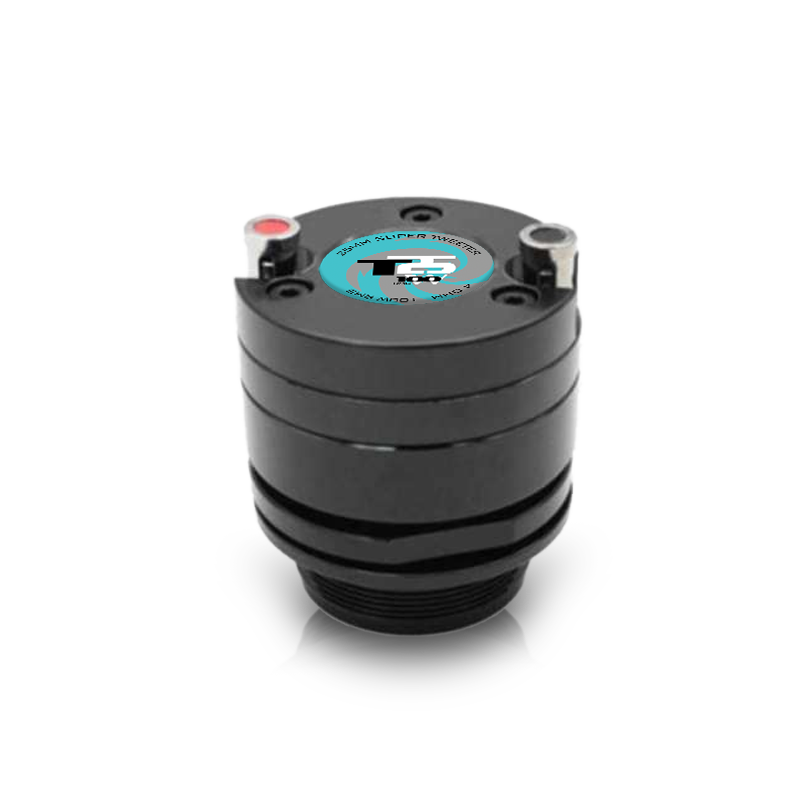

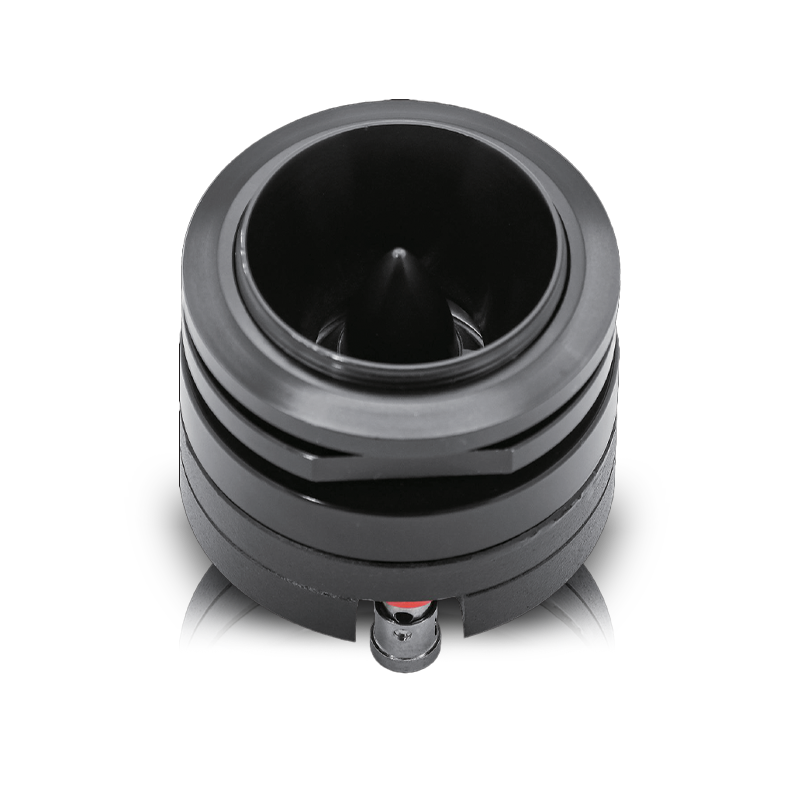

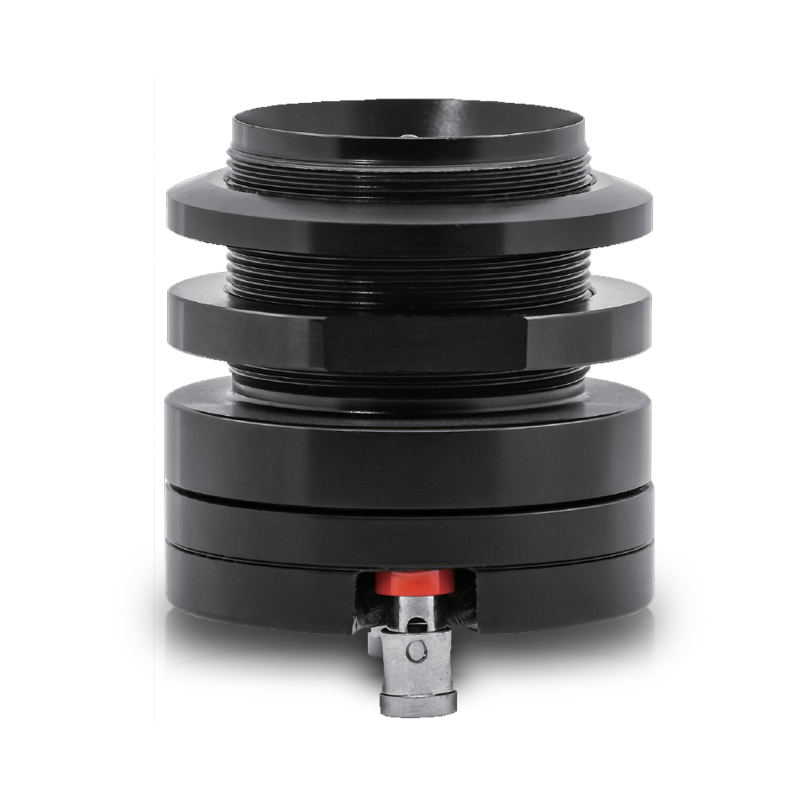

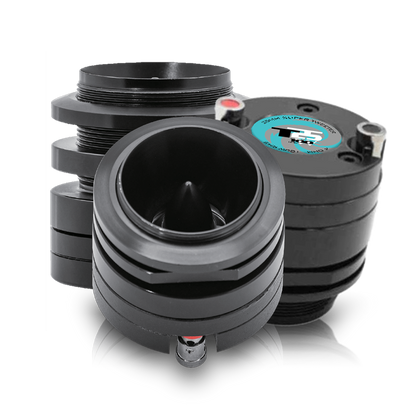

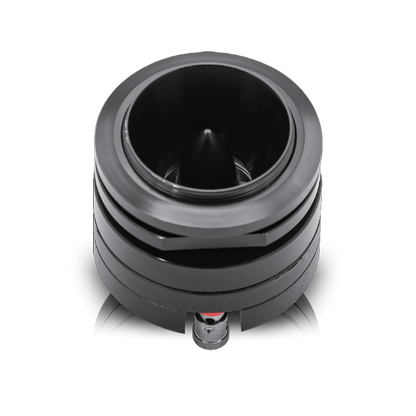

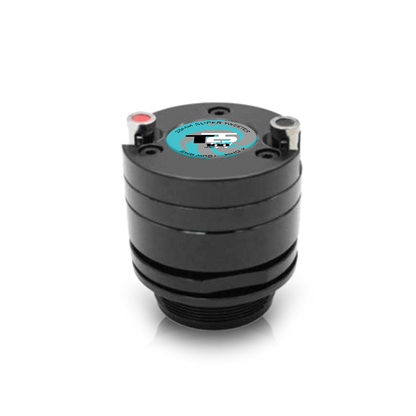

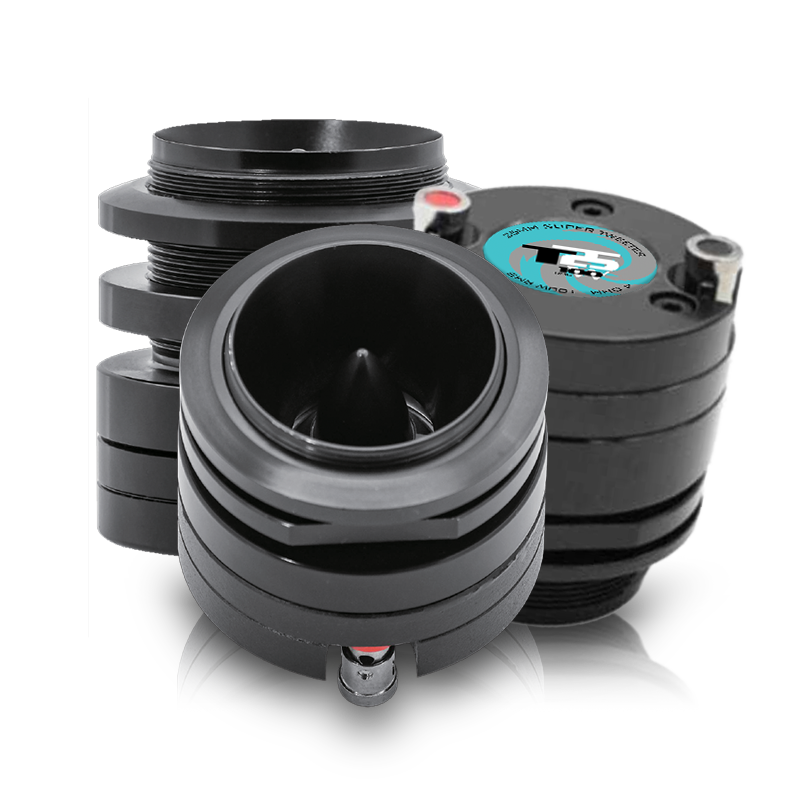

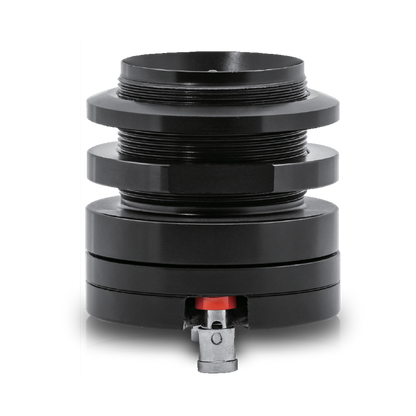

T25 Super Tweeter - 8 Ohm

Sold Individually

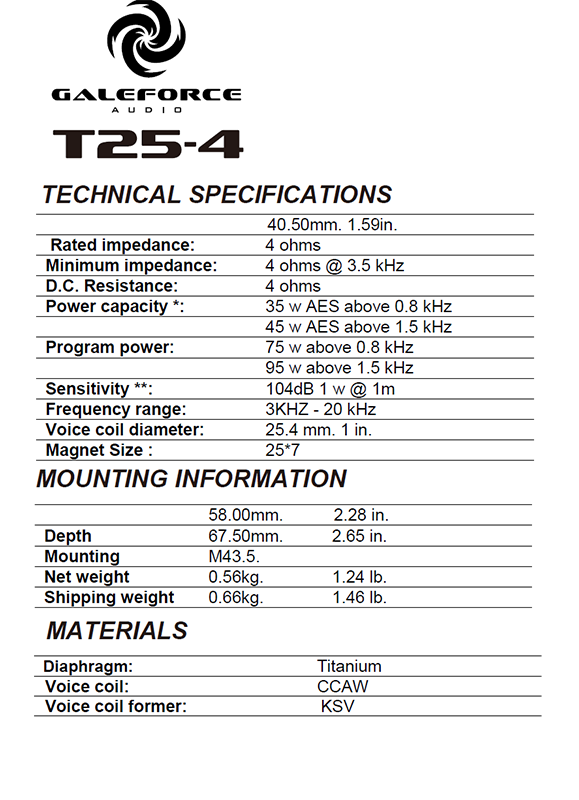

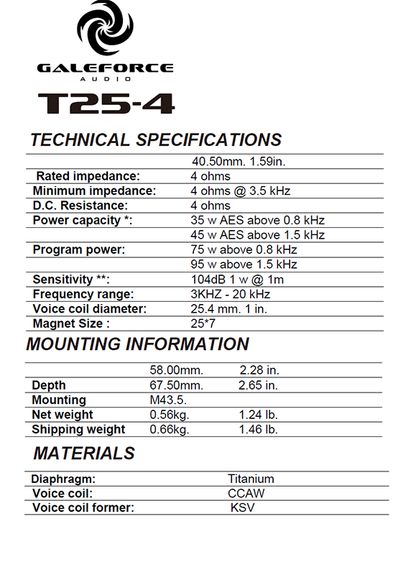

TECHNICAL SPECIFICATIONS
40.50mm. 1.59in.
Rated impedance: 4 ohms
Minimum impedance: 4 ohms @ 3.5 kHz
D.C. Resistance: 4 ohms
Power capacity *: 35 w AES above 0.8 kHz
45 w AES above 1.5 kHz
Program power: 75 w above 0.8 kHz
95 w above 1.5 kHz
Sensitivity **: 104dB 1 w @ 1m
Frequency range: 3KHZ - 20 kHz
Voice coil diameter: 25.4 mm. 1 in.
Magnet Size : 25*7

MOUNTING INFORMATION
58.00mm. 2.28 in.
Depth 67.50mm. 2.65 in.
Mounting M43.5.
Net weight 0.56kg. 1.24 lb.
Shipping weight 0.66kg. 1.46 lb.

MATERIALS
Titanium Diaphragm
Voice coil: CCAW
Voice coil former: KSV
