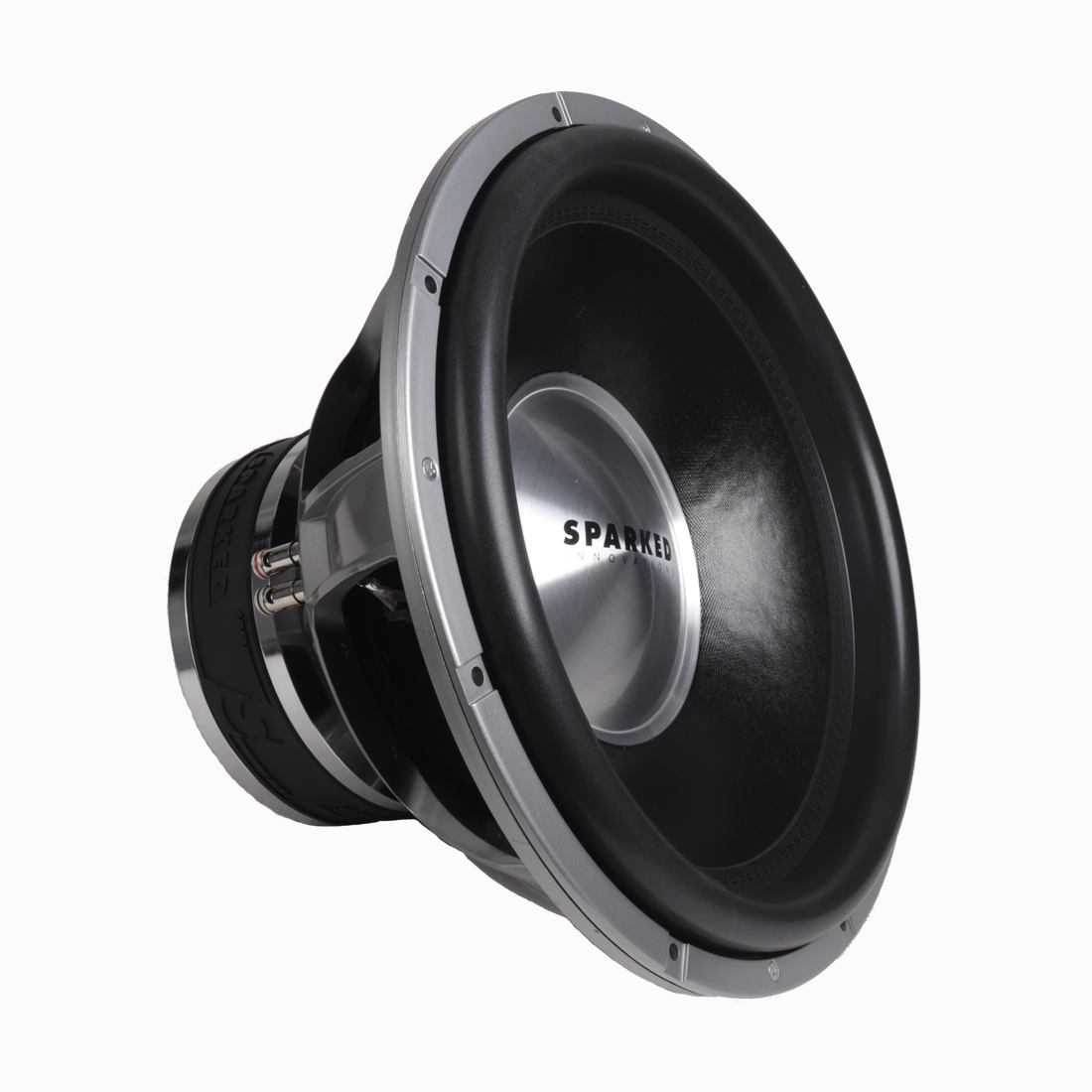

Sparked Innovations 18" SQL-2000 Car Audio Subwoofer 2000W DVC - D4

Name: Sparked Innovations 18" SQL-2000 Car Audio Subwoofer 2000W DVC - D4
Brand: Sparked Innovations
SKU: SQL18-D4
Price: 399.99 USD
Availability: InStock

$399.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

SKU:SQL18-D4

In stock

Categories: Subwoofers

View Product details

Sparked Innovations 18" SQL-2000 Car Audio Subwoofer 2000W DVC - D4

$399.99 USD

Shipping calculated at checkout.

Product Description
Additional information
Variant Information

Now shipping

Built upon the proven, World-Class, performance of The Bass Blaster, the SQL-2000 sets itself among some of the best sounding, most versatile, and durable woofers in it's class.

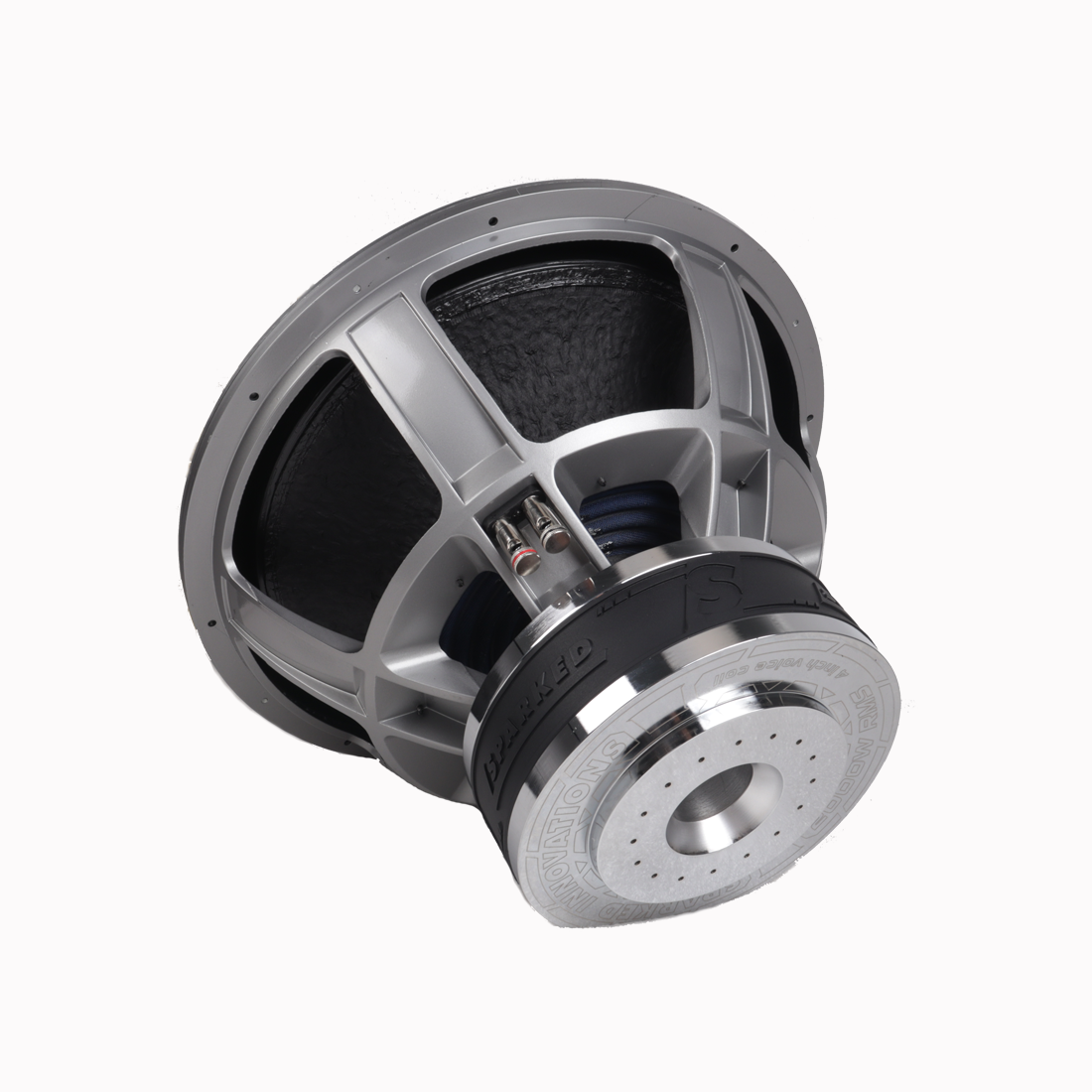

The four (4) inch copper coil comes immersed in a Jacob Fuller designed motor assembly complete with aluminum shorting pole cap, flared velocity heat-vents, and plenty of ferrite in it's dual 9.25" diameter slugs which gives it one of the highest motor forces in a woofer of it's size.

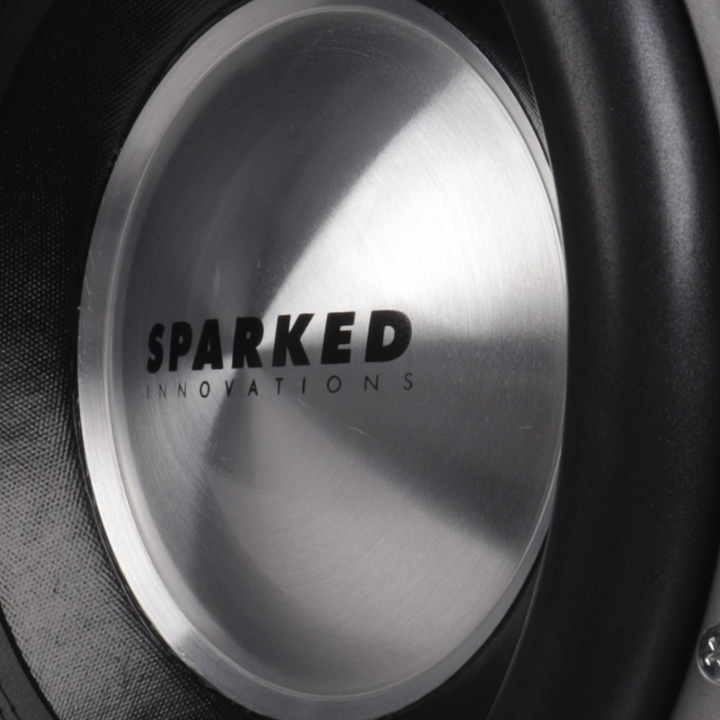

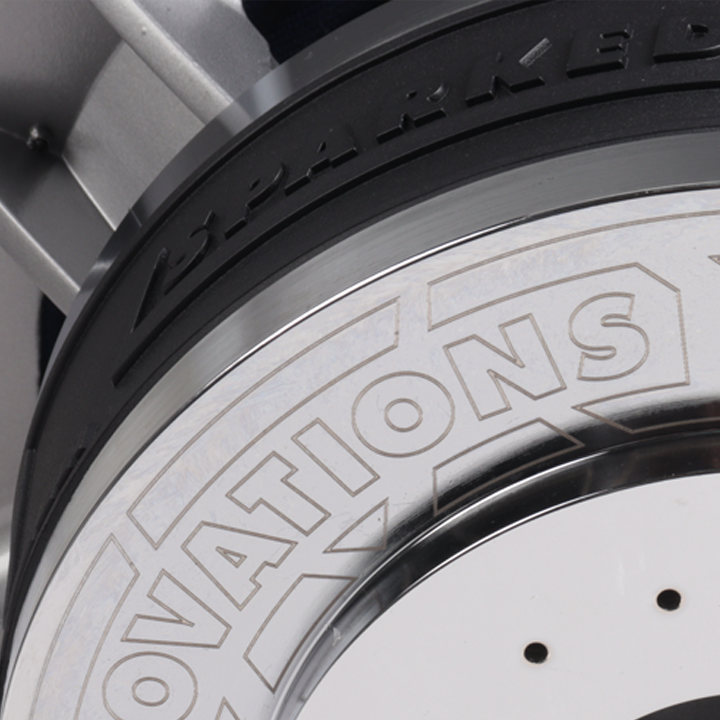

New styling gives the SQL-2000 a sleek look. A molded rubber magnet boot, laser engraved and polished backplate, and heavy aluminum dust cap add to the modern aesthetics and a classy style that's sure to blend well with almost any install.

General Specifications

Power handling	2000W RMS
Dual voice coil	D2 or D4
Xmax (mm one way)	21.5 Gap Geometry/ 25@ 70% BL
Xmech (mm one way)	42
Heat-treated 4-layer 4-inch coil
Quad braided tinsel leads
Multi-layer foam surround in Sparked Blue
Aluminum dust cap
Cast aluminum frame
High-velocity motor cooling

Measurements

Parameter	Metric (mm)	Imperial (in)
Outer Diameter	464.06	18.27
Mounting Diameter	426.47	16.79
Overall Depth	301.36	11.86
Mounting Depth	271.36	10.68

T/S Parameters

Parameter	D2	D4
RE (Ohms)	3.91	5.94
Fs (Hz)	26.72	27.44
VAS (L)	70.36	74.16
Qes	0.63	0.69
Qms	6.86	6.67
Qts	0.58	0.63
BL	32.08	36.54
Mms (Grams)	994.75	894.78
Cms (uM/N)	35.66	37.60
Sensitivity (dB @2.83Vrms/1m)	88.11 @ 1 kHz	86.52 @ 1 kHz

ENCLOSURE RECOMMENDATIONS

Size	Application	Enclosure Type	Volume (ft³)	Port			Tuning (Hz)	Details
Size	Application	Enclosure Type	Volume (ft³)	Type	Dia. (in)	Length (in)	Tuning (Hz)	Details
18"	General (most common)	SBB4 - Loud Bass Response	6.50-10.00	Round	Two x 6	18" @ 6.50ft³ 11" @ 10.00ft³	32
18"	General	SBB4 - Flat Response	3.25-4.25	Round	6	18" @ 3.25ft³ 13" @ 4.25ft³	32
18"	SQ	QB3 - Low-Frequency Peak	7.00-9.50	Round	6	16" @ 7.00ft³ 11" @ 9.50ft³	23
18"	SQ	QB3 - Flat Response	6.50-8.50	Round	6	25" @ 6.50ft³ 18" @ 8.50ft³	20
