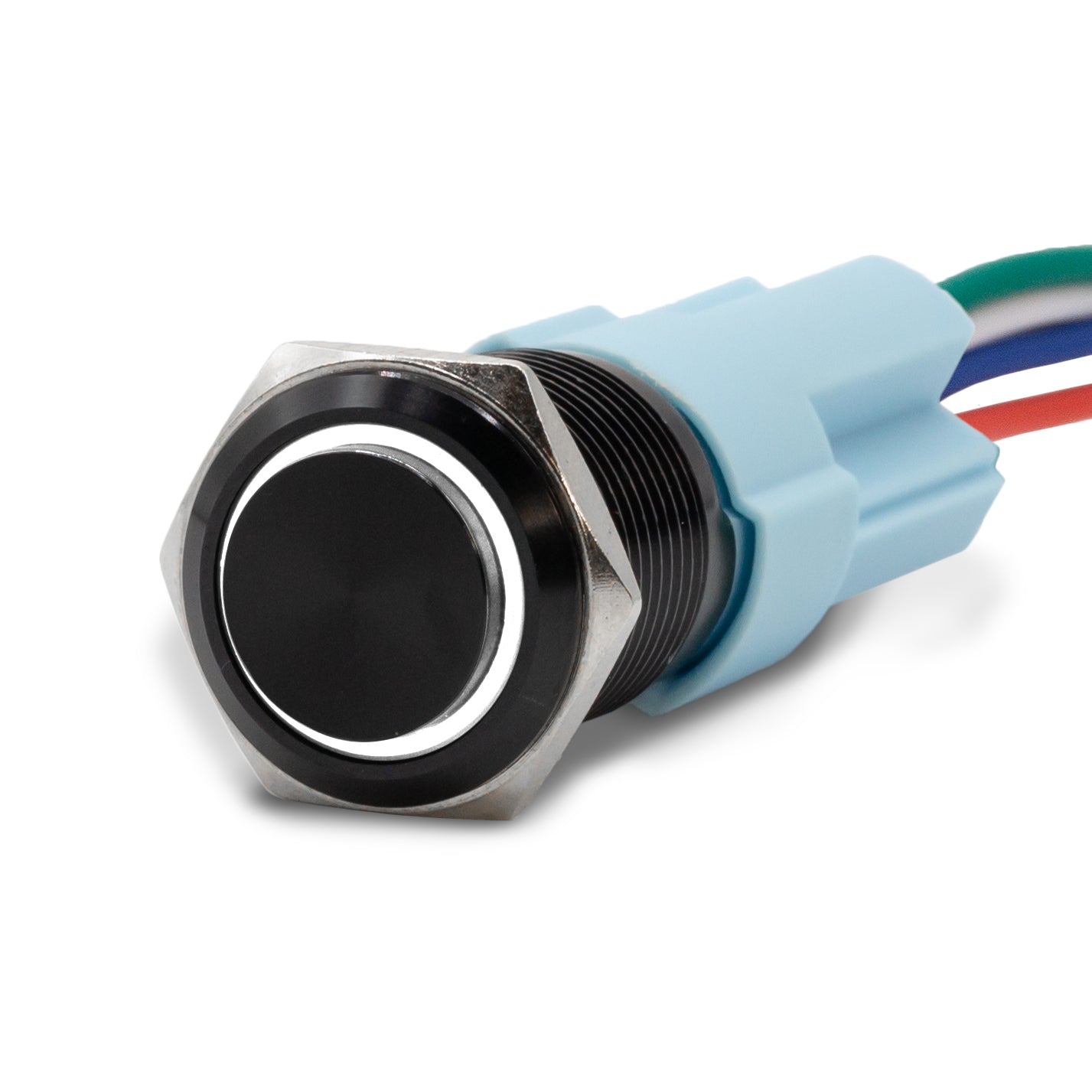

Momentary Black Halo Ring 12V Push Button Switch SPDT Two Pack - White

To have the LED illuminated always:

• Connect the Normally Open (N.O.) pole to the Positive (+) pole
• Connect the Positive (+) pole to your Positive (+) 12VDC power source (battery +)
• Connect the Negative (-) pole to your Negative (-) Ground source
• Connect the Common (C) pole to your 12V accessory (horn, fuel door, trunk pop, door solenoid, etc.)

To have the LED illuminate only when the button is pressed and held:

• Connect the Normally Open (N.O.) pole to the Positive (+) pole
• Connect the Positive (+) pole to your 12V accessory (horn, fuel door, trunk pop, door solenoid, etc.)
• Connect the Negative (-) pole to your Negative (-) Ground source
• Connect the Common (C) pole to your Positive (+) 12VDC power source (battery +)

it to activate horns, fuel doors, trunk pops, door solenoids, anything that needs a momentary pulse.

Illuminates a ring around button head when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position.

IP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.

Specifications

• Mounting diameter = 16mm
• Head diameter = 18mm
• Mounting depth = 35mm
• LED operating voltage = 12v DC, range = 9~16v
• Max switch rating = 3A/250v AC
• Contacts = 1NO, 1NC
• LED life = 40,000+ hrs.
