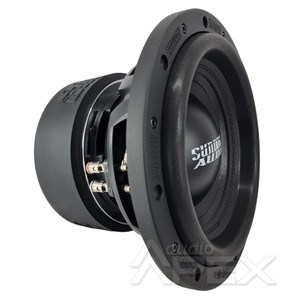

Sundown Audio SA Classic 10" inch DVC Dual 4 Ohm (SA Series) Car Subwoofer 750 Watts RMS

Sundown Audio SA Classic 10" inch DVC Dual 4 Ohm (SA Series) Car Subwoofer 750 Watts RMS

Sundown Audio
Availability:
0.85
$249.99
$299.99
(You save $50.00 )
(No reviews yet)
Weight:
30.00 LBS
Width:
12.00 (in)
Height:
12.00 (in)
Depth:
12.00 (in)
Current Stock:
Adding to cart… The item has been added
Description



Features & Technology:

  • Xmax = 19mm one-way by 70% BL
  • RMS Power = 750-watts
  • * Vented magnetic gap
  • * Optimized high-velocity pole vent
  • * Innovative high-velocity vented frame spacer ring
  • Black Aluminum 2.5” voice coil former for superior heat dissipation
  • High Temperature copper voice coil wire
  • Large aluminum faraday ring (Magnet ID)
  • Spring Loaded Terminals
  • Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
  • High strength cast aluminum frame
  • Optimized for small ported, sealed, & band-pass enclosures

* — These features combine to create the optimized coil ventilation system.”



T/S SPECS SA Classic 10″ D2 SA Classic 10″ D4
RE (Ohms) 4.29 7.08
FS (Hz) 35.4 36.6
VAS (L) 10.13 10.66
Qes 0.52 0.54
Qms 5.41 5.30
Qts 0.48 0.49
Le (mH) 3.41 4.71
BL (NA) 20.40 24.82
Mms (Grams) 230 205
Cms (uM/N) 87.8 92.4
Sens (dB @ 1w/1m) 81.0 81.6



ENCLOSURE SPECIFICATIONS
Sealed Enclosure 0.5 cu ft
Ported Enclosure 1.0 cu ft
Recommended Tuning 35Hz
Recommended Port Area 15 sq in
Displacement 0.1 cu ft
Depth 6″
Outside Diameter 10.5″
Cut-Out 9.25″



Sundown Audio SA Classic 10" Enclosure Design

https://sundownaudio.com/images/2021/products/subs/enclosure-designs-e-sa-sav2-u-series/10/E-SA-SAv2-U-10in-Single.zip
