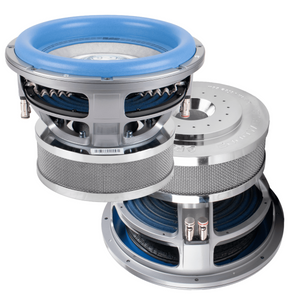

Sparked Innovations 10" Bass Blaster SQL Car Audio Subwoofer 2000W DVC

Sundown Audio
$489.99
$649.99
(You save $160.00 )
(No reviews yet)
Weight:
75.00 LBS
Width:
16.00 (in)
Height:
16.00 (in)
Depth:
16.00 (in)
Shipping:
Free Shipping
Current Stock:
Adding to cart… The item has been added

The Bass Blaster subwoofer series is a truly unique blend of car audio nostalgia and modern technology. Designed and built as a product of love for car audio, this subwoofer will look as good in your installation as it will sound. As lifelong enthusiasts ourselves, we knew the demands this subwoofer would need to meet. The engineering expertise of Jacob Fuller, founder of Sundown Audio, has led to a subwoofer that can take the abuse of high-powered systems that the modern-day enthusiast likes to throw at everything. Advanced cooling techniques, high-excursion linear suspension, and classically inspired aesthetics mean The Bass Blaster will give you the best-sounding bass, for a long time, as you turn the heads of anyone that takes a look.

Design

Our philosophy with The Bass Blaster was to recreate the feel of car audio from our youth. The blue surround is not just our branding color, it is an homage to woofers of the 1990s that used brightly colored surrounds as a signature look. The balance of the blue to the grey/silver basket and cone harkens back to the early 2000s when some of our favorite woofer models sported a distinct style. The aluminum dust cap gives depth and texture to the woofer as a whole and adds rigid reinforcement to the cone body. The genesis of the design was the motor itself, the large vent for the four-inch coil caught our eye in car audio shops in the 1990s. Jacob Fuller captured that look while tapering the vent and adding a pole cap to not compromise modern cooling techniques for the best performance-to-aesthetics ratio possible. Topped off with the metal mesh over the magnet slugs, The Bass Blaster is the 90s/2000s woofer we all wish we had in our teens, but even better that we have it in our 40s.

General Specifications

Power handling 2000W RMS
Dual voice coil D2 or D4
Xmax (mm one way) 25
Xmech (mm one way)  50
Heat-treated 4-layer 4-inch coil
Quad braided tinsel leads
Multi-layer foam surround in Sparked Blue
Aluminum dust cap
Cast aluminum frame
High-velocity motor cooling

Measurements

Parameter Metric (mm) Imperial (in)
Outer Diameter 272 10.71
Mounting Diameter 240 9.45
Overall Depth 221 8.70
Mounting Depth 191 7.52

T/S Parameters

Parameter 10" D2 10" D4
RE (Ohms) 3.97 6.9
Fs (Hz) 34.25 35.60
VAS (L) 6.23 6.41
Qes 0.46 0.55
Qms 4.97 4.97
Qts 0.43 0.50
BL 30.86 36.01
Mms (Grams) 517.84 465.72
Cms (uM/N) 41.69 42.92
Sensitivity (dB @2.83Vrms/1m) 82.10 @ 1 kHz 79.57 @ 1 kHz



ENCLOSURE RECOMMENDATIONS

Size Enclosure Type Volume (ft³) Port Tuning (Hz) Details
Type Dia. (in) Length (in)
10" QB3 - Flat Response 0.40-0.75 Round 2 32" @ 0.40ft³
16" @ 0.75ft³
25



10" Low-frequency tuning (QB3 or Third-Order Quasi-Butterworth) - Flat Response

? Technical Specifications

  • Box Volume: 0.40 ~ 0.75 ft³
  • Port Type: Round
  • Port Diameter: 2 inches
  • Port Length: 32" (0.40 ft³) ~ 16" (0.75 ft³)
  • Tuning Frequency: 25 Hz

? Characteristics

  • Plays like a sealed box with more efficient output

✅ Pros

  • Flat response, similar output across all music genres
  • Low-frequency extension - can play subsonic
  • Small enclosure sizes

❌ Cons

  • Reduced Peak SPL
  • Sub-optimal transient response
  • Long port
