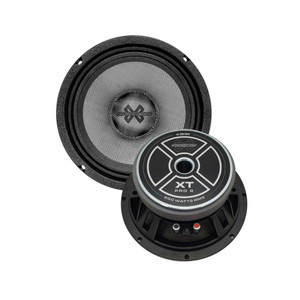

XT-PRO 10
1O" High Efficiency Midrange Speaker
SPECIFICATIONS
Nominal Diameter 10"
Nominal Impedance 4/8 Ohm
RMS Power 300 Watts
Sensitivity 97 dB
Frequency Range 50Hz - 8kHz
Voice Coil Diameter 2.5"
THIELE/ SMALL PARAMETERS
Resonant Frequency, FS 58Hz
DC Voice Coil Resistance, Re 3.6 / 7.2 Ohm
Mechanical Quality Factor, QMS 16.37
Electrical Quality Factor, Qes 0.45
Total Quality Factor, Ots 0.44
Equivalent Air Volume to Cms, Vas 3.17 L
Mechanical Compliance, Cms 187.1 uM/N
Mechanical Resistance , Rms 0.88 kg/s
BL Factor, BL 10.56 N/A
Effective Surface Area, Sd 35.6 m M
Linear Excursion , Xmax 3mm
Materials
Basket Aluminum
Cone Carbon Fiber
Surround Treated Cloth
Voice Coil Wire CCAW
Voice Coil Bobbin Kapton
Magnet Ferrite
Mounting Information
Overall Diameter 10.2" / 261 mm
Bolt Circle Diameter 9.7" / 248 mm
Baffle Cutout Diameter 9.2" / 236 mm
Mounting Depth 4.2" / 107 mm
Net Weight 9.5 lbs / 4.3 kg
